- 장비명(국문)
- 표면분석기 (Dektak entry system)
-
- 장비명(영문)
- Dektak entry system
-
- 호실
- 209
-
- 장비구분
- 표면측정장치
-
- 제조사
- Bruker
-
- 모델명

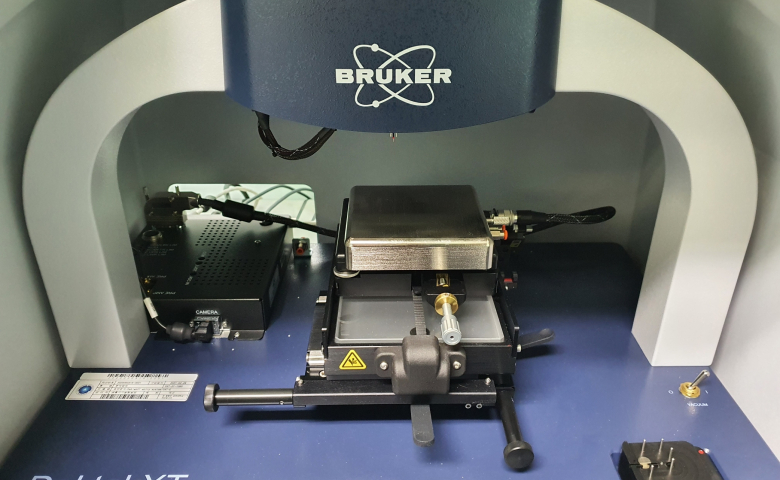

- DektakXT Stylus Profiler
상세스펙
– DXT-E DektakXT Entry System
– DXT-220V-EU Configure Power for 220-240 VAC-Europe operation
– DXT-DESKTOP 64bit Desktop Controller
– DXT-4IN BASE 4-Inch square base platform with no vacuum capability
– DXT-STYL-2UM-B Stylus, LIS 3, 2um Ra dius- Type B
– DXT-2D STRESS 2D Stress Measurement Capability
– CAL-1UM Calibration Standard, nominal 940nm (0.94um),
– Vibration Isolation Table, including working area
– 1500mm x 900mm x 800mm (local supply)
응용분야
코팅, 전자 공학, 반도체, 태양광 산업
용도
depth analysis from surface 재료 표면 깊이(낙차) 측정
기타
분석료: 48,000원/시간
